LumeLink
USB-C UART Debugging Made Simple
USB-C UART Debugging
Female USB-C Ports
Safer design protects your hardware from damage
SBU Pin Access
Reads UART data directly from USB-C SBU pins
LumeLink
About LumeLink

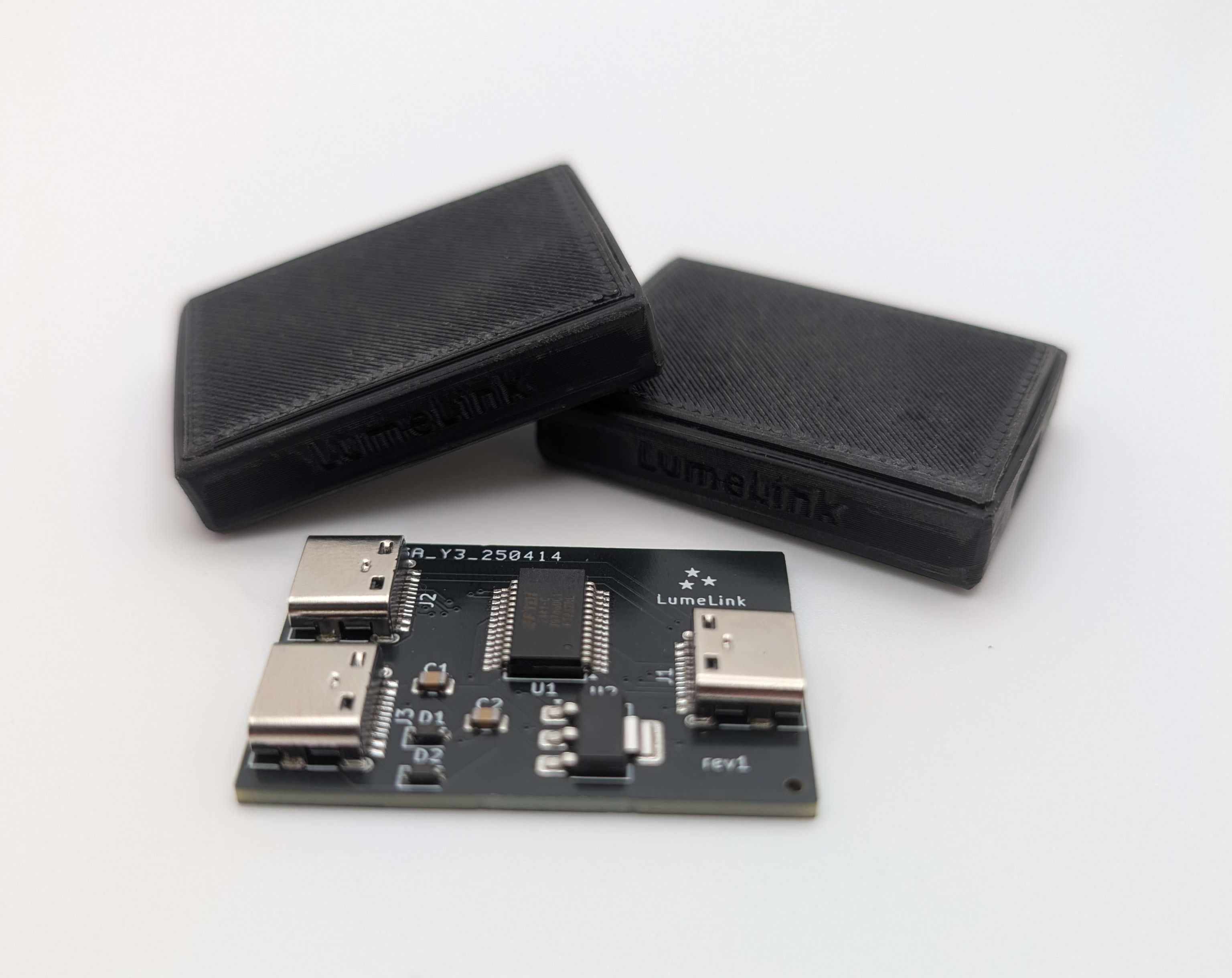

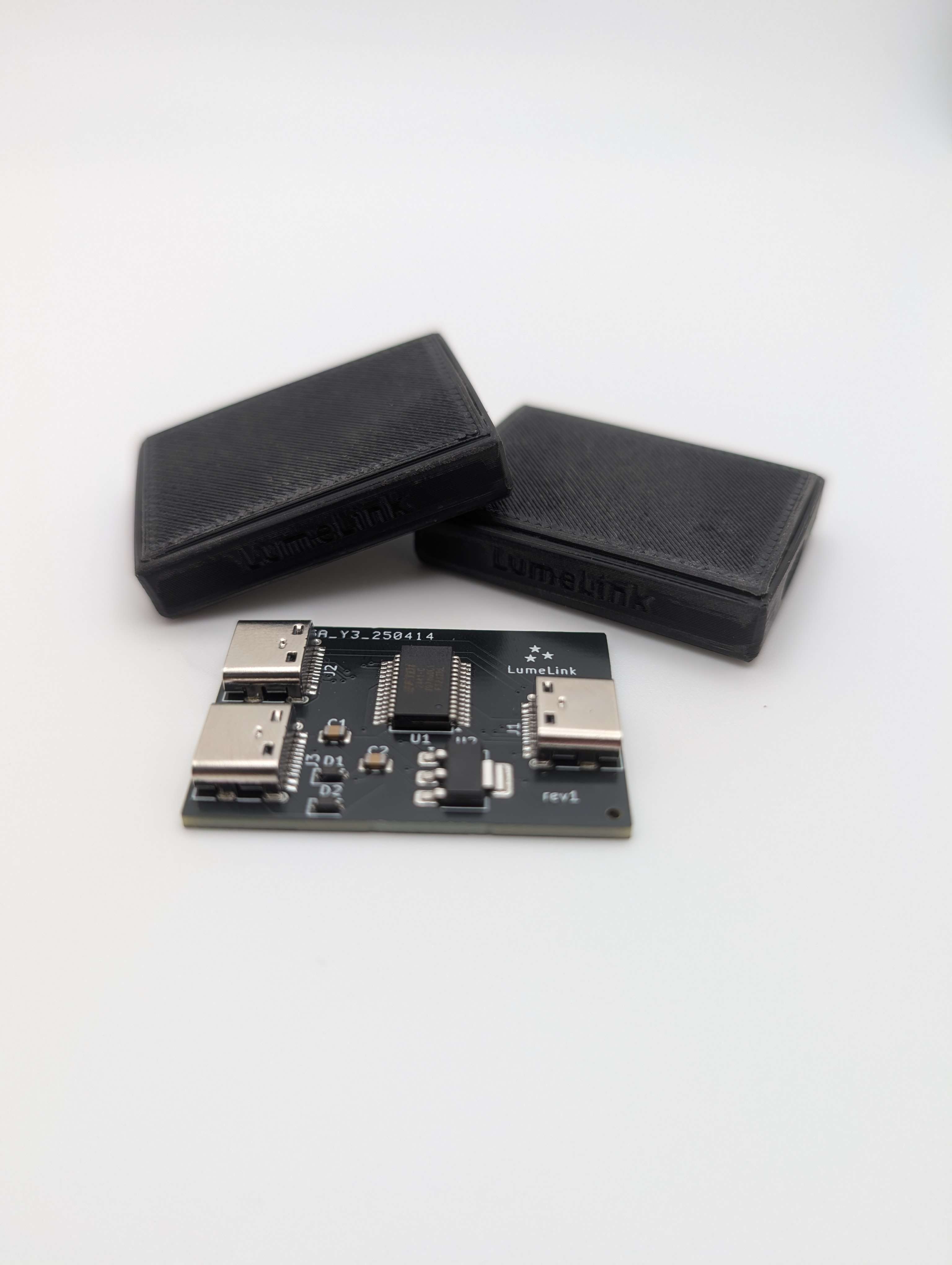

LumeLink is a UART debugging tool specifically designed for USB-C devices. It safely and reliably captures debug logs by reading the SBU1 and SBU2 pins in the USB-C connection where UART data is transmitted.
Key Features
- Three female USB-C ports in a safer, more durable configuration
- FT232RL UART chip for reliable signal conversion
- Specialized design for reading SBU1/SBU2 pins in USB-C connections
- Capture boot logs and debugging information
- Low price when compared to other comparable products
Technical Specifications
| Ports | 3× USB-C female (2 on one side, 1 on the other) |
| Connectivity | One pass-through port, one UART-connected port (Side A), one device connection port (Side B) |
| UART Interface | Reads SBU1 and SBU2 pins from USB-C connection |
| Chip | FT232RL UART to USB converter |
| Cable Requirements | 16-pin or higher USB-C cables |
| Price | $25 |
Use Cases
- Capturing boot logs from USB-C devices
- IoT device debugging and development
- USB-C embedded systems troubleshooting
- Serial communication monitoring via SBU pins
- Low-level firmware debugging for USB-C hardware
Available Now
Order Today
LumeLink

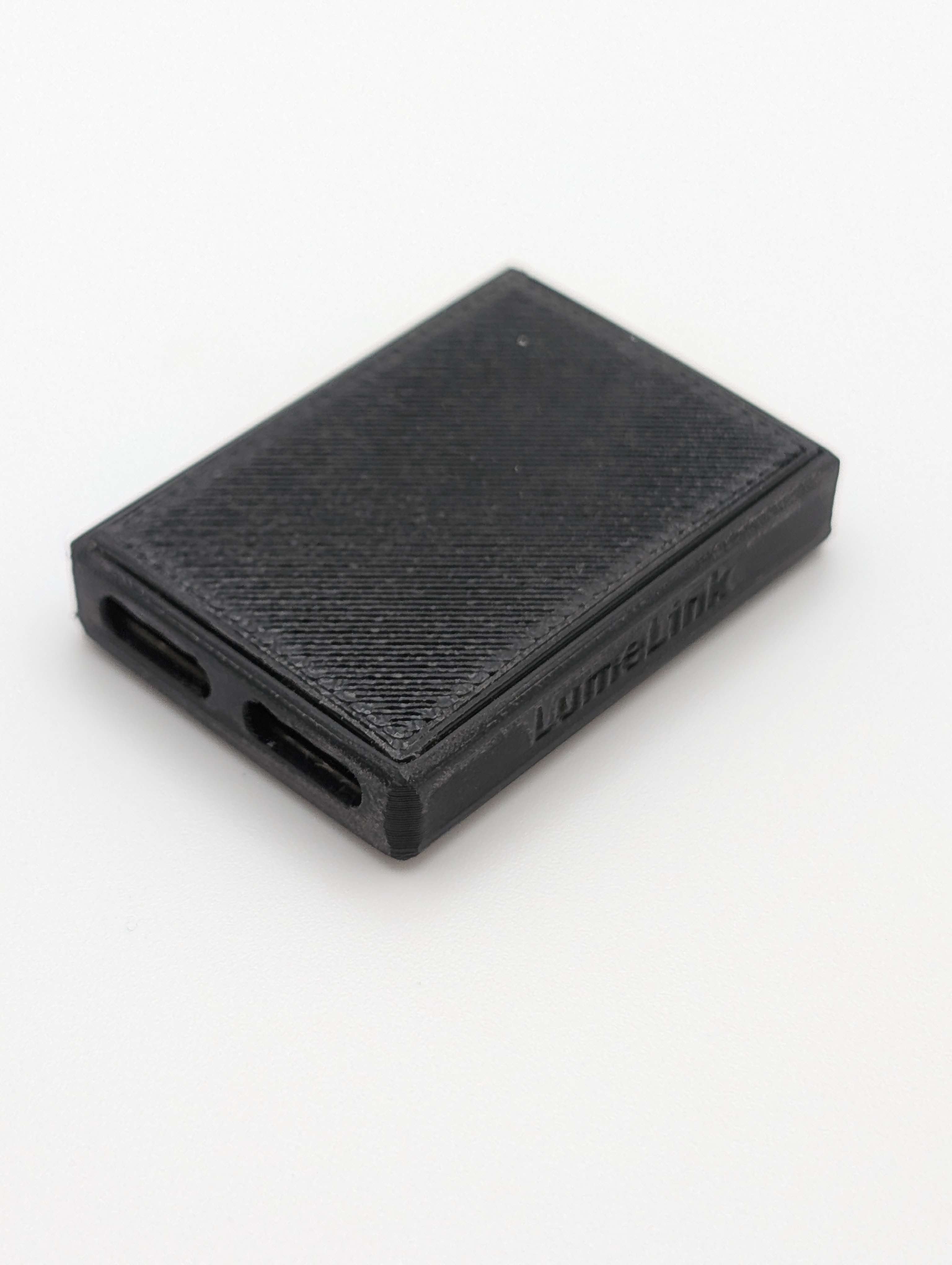

Side A: Dual USB-C Ports

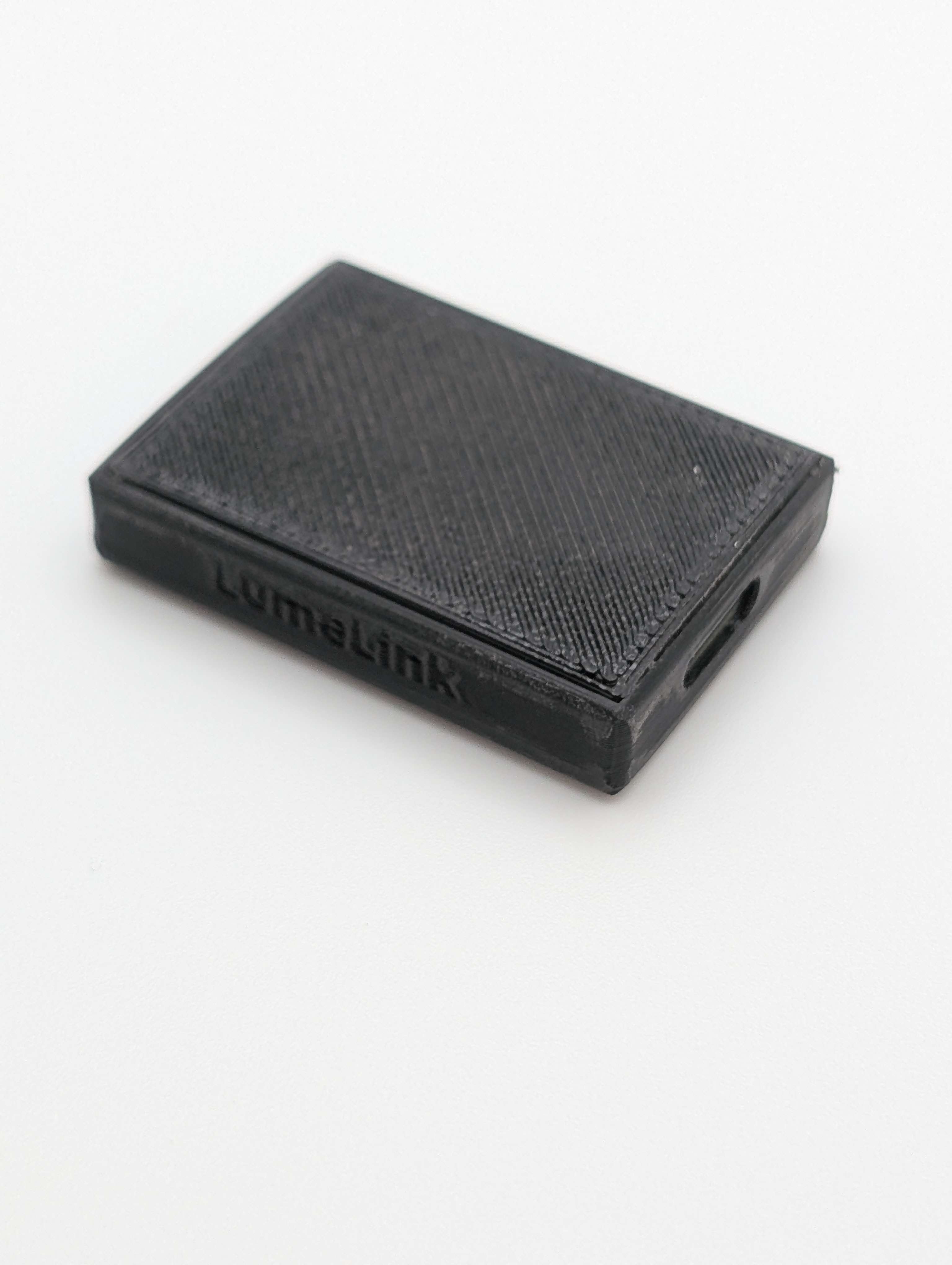

Side B: Device Connection
How It Works
LumeLink's innovative three-port design offers a safer and more durable approach to UART debugging for USB-C devices:
Port Configuration
- Side A (2 ports): One port passes through completely, while the second connects to the UART chip to read SBU1/SBU2 pins
- Side B (1 port): Connects to your USB-C device using a 16-pin or higher USB-C cable
LumeLink's all-female port design ensures that only the replaceable cables are at risk of damage, protecting your investment and providing a more reliable debugging experience.
How It Works
Side A: Dual USB-C Ports
One complete passthrough port, one for capturing UART data via SBU pins
Side B: Single USB-C Port
Connects to your device to read UART data from SBU1/SBU2 pins
Technical Highlights
All-Female USB-C Ports
Protects your device and prevents damage to connectors
FT232RL UART Chip
Industry-standard hardware for reliable debugging
LumeLink
$25Simplify your USB-C debugging with our specialized UART tool designed for developers
